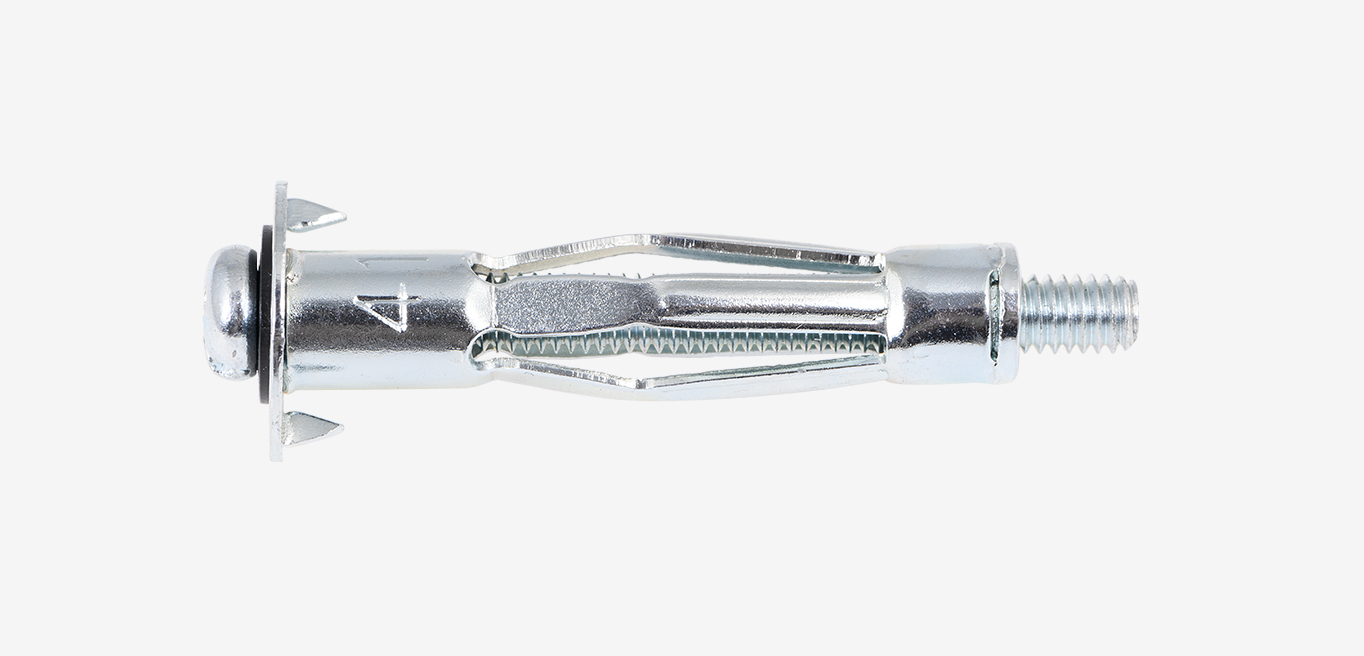

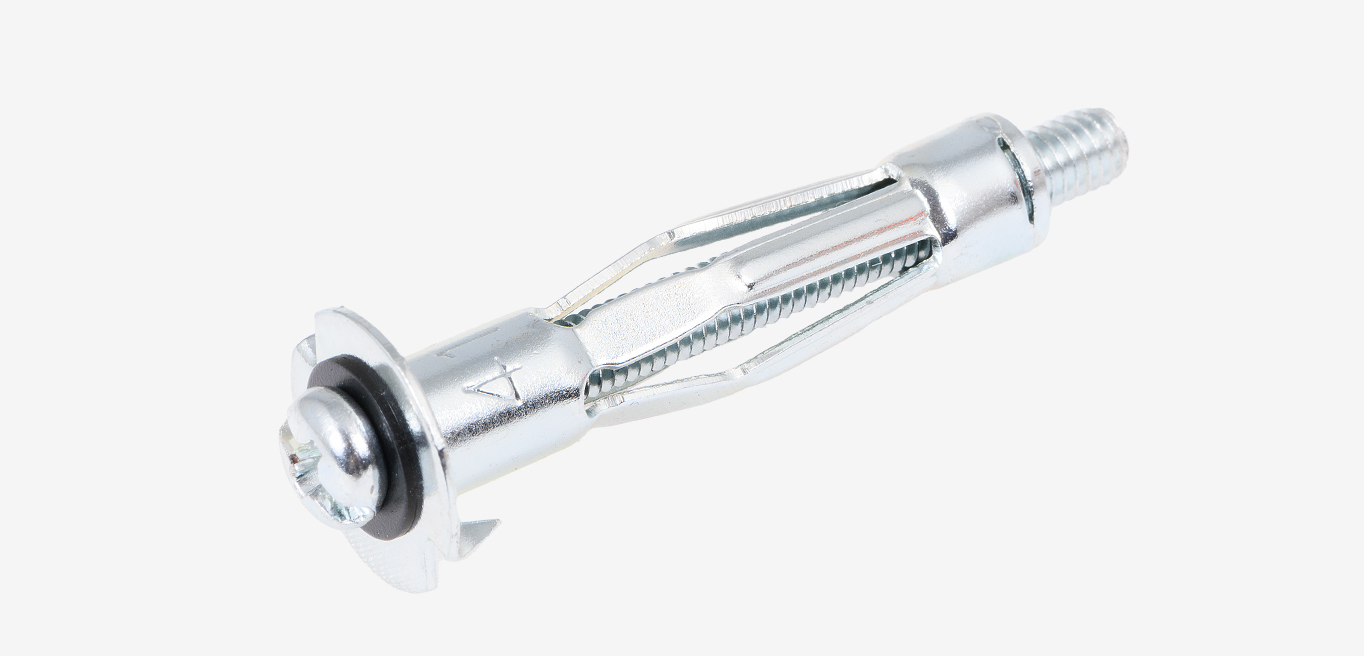

Hollow Wall Anchor

The Ramset™ Wall Anchor is suitable for all metal, light-duty cavity fixing for plasterboard and other hollow wall materials.


Max. Thickness (mm)
  • 5
  • 6-16
  • 7-14

Before visiting a Stockist or Service Centre, contact them to ensure product availability.


PART NUMBER:

product-image
product-image
product-image
product-image
Contact Details

    Other information


    close-btn
    -+PRODUCT INFORMATION

    Click on the column headings to reorder the table.

    ITEM CODEMaterialMax. Thickness (mm)Drilled Hole (mm)Pack TypeOrder QtyADD TO TOOLBOX
    R934917steel-zinc-plated7-149Card4
    R467454steel-zinc-plated58Card2
    R467485steel-zinc-plated6-168Card2
    steel-zinc-plated

    STEEL ZINC PLATED

    stainless-steel

    STAINLESS STEEL

    galvanised-steel

    GALVANISED STEEL

    The selected variations added in the toolbox. Please view the items in the toolbox.
    -+FEATURES & BENEFITS
      • Low-profile head allows for low-profile fixing.
      • Large flange prevents the head from pulling into the substrate.
      • Anti-rotation barbs, incorporated in the flange, prevent the anchor from spinning in the hole.
      • Collapsing legs with an integral nut provide high strength and allow the screw to be removed without losing the anchor inside the cavity.
    -+TECHNICAL DATA & DOCUMENTS
    RAMSET SPECIFIERS PRODUCT GUIDE PDF
    -+SPECIFICATIONS
    Suitable Wall Thickness

    5mm

    Drill Size

    8mm
