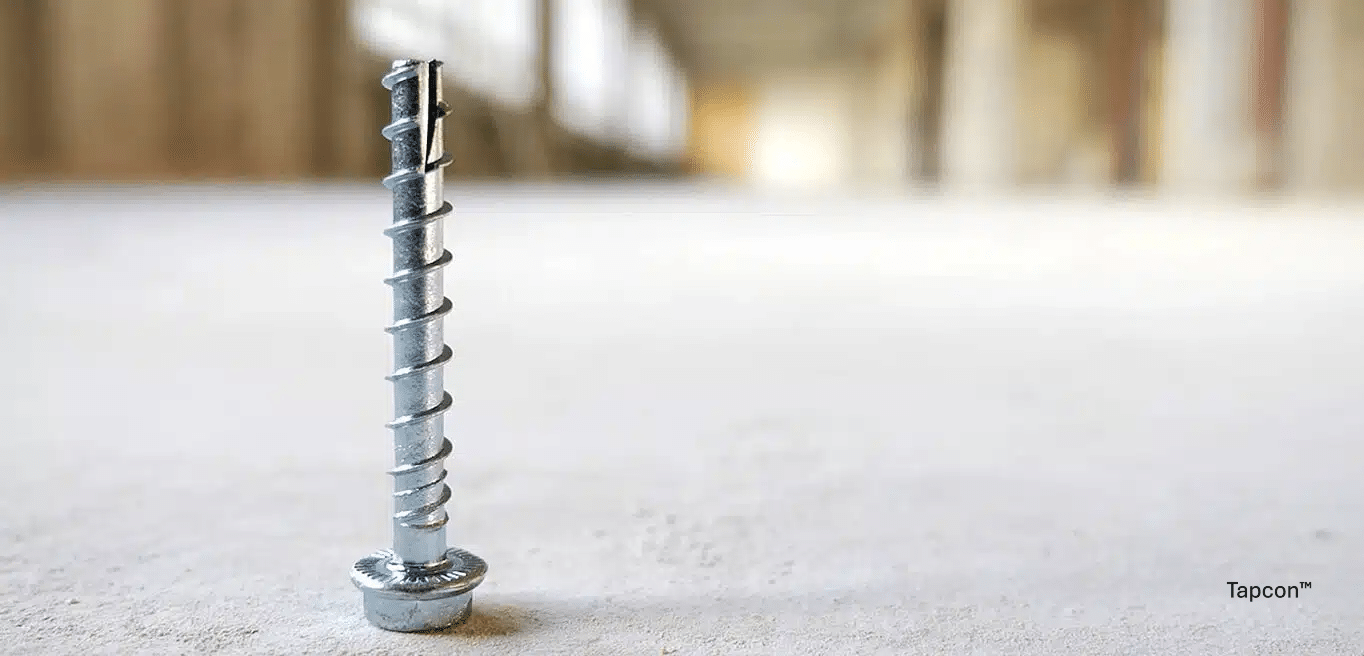

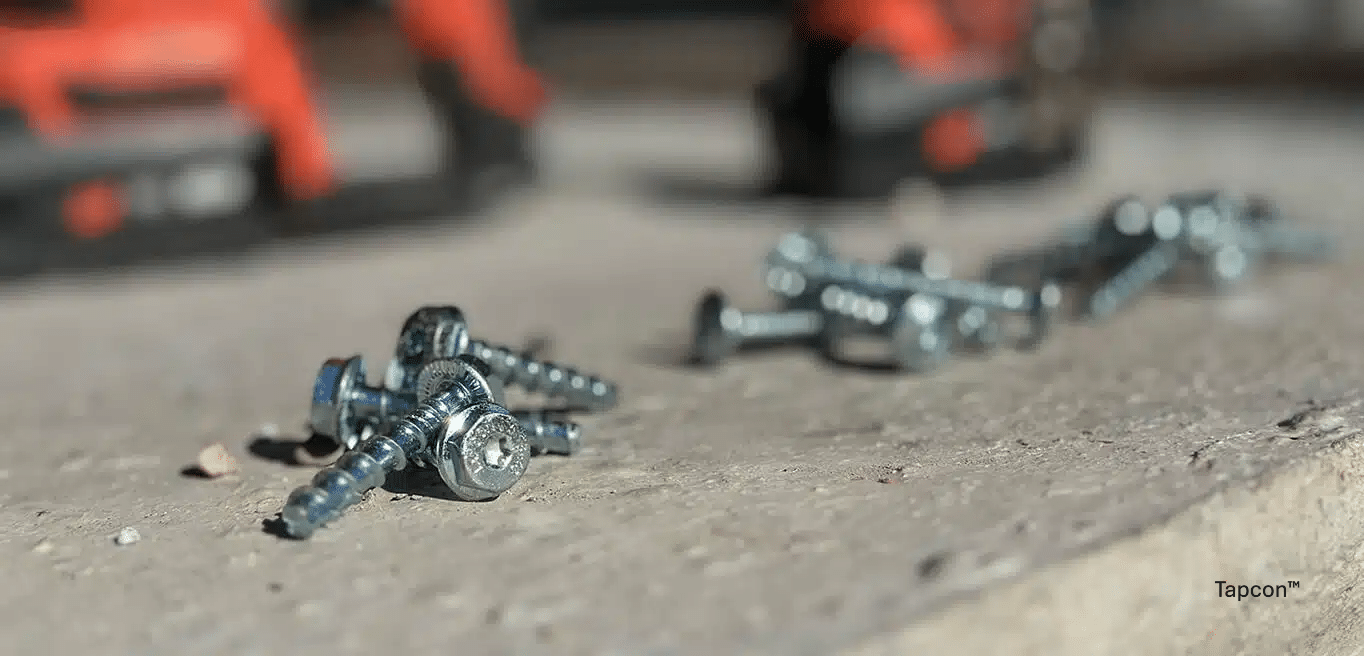

AnkaScrew™ Xtrem™

Ramset AnkaScrew Xtrem is an ETA certified, seismic andfire rated heavy duty screw-in anchor. This removable anchor is well suited to close-to-edge or close-to-anchor fixing as it does not expand and burst the surrounding substrate.

Thread Size

6
AS06055XM810,AS06080X,AS06050X
8
AS08080X,AS08060X
10
AS10100X,AS10060X
12
AS12150X,AS12110X

Anchor Length (mm)

50
AS06050X
55
AS06055XM810
60
AS10060X,AS08060X
80
AS08080X,AS06080X
100
AS10100X
110
AS12110X
150
AS12150X

Before visiting a Stockist or Service Centre, contact them to ensure product availability.

PART NUMBER:

ADD TO TOOLBOX iEXPERT

-+PRODUCT INFORMATION

Click on the column headings to reorder the table.

ITEM CODE	Thread Size	Anchor Length (mm)	Max. Fixture Thickness (mm)	Drilled Hole (mm)	Min. Hole Depth (mm)	Fixture Hole (mm)	Socket Size	Order Qty
AS06055XM810	6	55	10	6	45	8	13	50
AS12150X	12	150	85	12	75	16	17	25
AS12110X	12	110	45	12	75	16	17	25
AS10100X	10	100	45	10	65	14	15	50
AS10060X	10	60	5	10	65	14	15	50
AS08080X	8	80	35	8	55	12	13	100
AS08060X	8	60	15	8	55	12	13	100
AS06080X	6	80	40	6	45	8	13	100
AS06050X	6	50	10	6	45	8	13	100

STEEL ZINC PLATED

STAINLESS STEEL

GALVANISED STEEL

ADD

The selected variations added in the toolbox. Please view the items in the toolbox.

-+FEATURES & BENEFITS

- High thread engagement increases clamp force and holding capacity over a wide range of loading
- The AnkaScrew™ Xtrem™ is ideal for close-to-edge and close-to-anchor installation as its self-tapping, rotation setting method of installation is subject to low expansion pressure, therefore does not burst the substrate
- For concrete, hollow core, brick & block (solid & hollow).
- The AnkaScrew™ Xtrem™ thread design provides clearance for rapid removal of material and reduces jamming
- The AnkaScrew™ Xtrem™ is 100% removable
- The AnkaScrew™ Xtrem™ is both fast and easy to install as it simply screws into a pre-drilled hole.
- Available in Zinc plating
- Suitable for installation with impact wrenches

-+APPLICATIONS & TRADES

Steel Framing	Carpenter, Construction Contractor
Bottom plates	Carpenter, Formworker
Handrails	Carpenter, Construction Contractor
Pallet racking	Racking Installer, Formworker
General Anchoring	Carpenter, Construction Contractor, Racking Installer, Formworker

-+TECHNICAL DATA & DOCUMENTS

RAMSET PRODUCT CATALOGUE	PDF
RAMSET SPECIFIERS PRODUCT GUIDE	PDF
ANKASCREW™ & DYNASET™ FIRE RELATED ANCHORING SYSTEMS	PDF
ANKASCREW™ XTREM™ PRODUCT FLYER	PDF
ANKASCREW™ XTREM™ SCREW IN ANCHORS	PDF
ANKASCREW™ XTREM™ SEISMIC – MECHANICAL ANCHORS	PDF
ANKASCREW™ XTREM™ FIRE RATED ANCHORING SYSTEMS	PDF
ANKASCREW™ XTREM™ & BOACOIL™ EXPANSION ANCHORS TDS	PDF
ANKASCREW™ XTREM™ & TRUBOLT™ XTREM™ – COMPOSITE FLOORING APPLICATIONS	PDF
ANKASCREW™ XTREM™ ETA	PDF
ANKASCREW™ XTREM™ ETA	PDF
CSIRO FIRE TEST ANKASCREW™ ROD STUD ETA	PDF

-+SPECIFICATIONS

Approvals	European Technical Assessment (ETA), Seismic, Fire
Material	High Carbon Steel
Corrosion Protection	Zinc Plating
Head Styles	Flanged Hex
Fixing Method	Through Fixture
Setting Method	Rotation
Anchoring Method	Thread Forming
Substrates	Concrete, Hollow Core,Solid Brick, Solid Block, Hollow Block, Hollow Slab, Hollow Brick
