Boa™ Coil Expansion Anchors Hex Bolt

The Boa Coil Expansion Anchor is a removable, high strength, heavy duty, rotation setting expansion anchor for concrete. It is ideally suited for through fixing into concrete when cast-in performance or clean removal is required.


Thread Size
  • 13
  • 16
  • 19

Anchor Length (mm)
  • 75
  • 90
  • 100
  • 115
  • 125

Before visiting a Stockist or Service Centre, contact them to ensure product availability.


PART NUMBER:

product-image
product-image
product-image
product-image
product-image
product-image
product-image
product-image
Contact Details

    Other information


    close-btn
    -+PRODUCT INFORMATION

    Click on the column headings to reorder the table.

    ITEM CODEMaterialThread SizeAnchor Length (mm)Max. Fixture Thickness (mm)Drilled Hole (mm)Min. Hole Depth (mm)Effective Length (mm)Fixture Hole (mm)Order QtyADD TO TOOLBOX
    BAC12115steel-zinc-plated191152519120932120
    BAC10125steel-zinc-plated1612540161301061925
    BAC10090steel-zinc-plated16901216105711925
    BAC08100steel-zinc-plated131003013100841450
    BAC08075steel-zinc-plated1375121390591450
    steel-zinc-plated

    STEEL ZINC PLATED

    stainless-steel

    STAINLESS STEEL

    galvanised-steel

    GALVANISED STEEL

    The selected variations added in the toolbox. Please view the items in the toolbox.
    -+FEATURES & BENEFITS

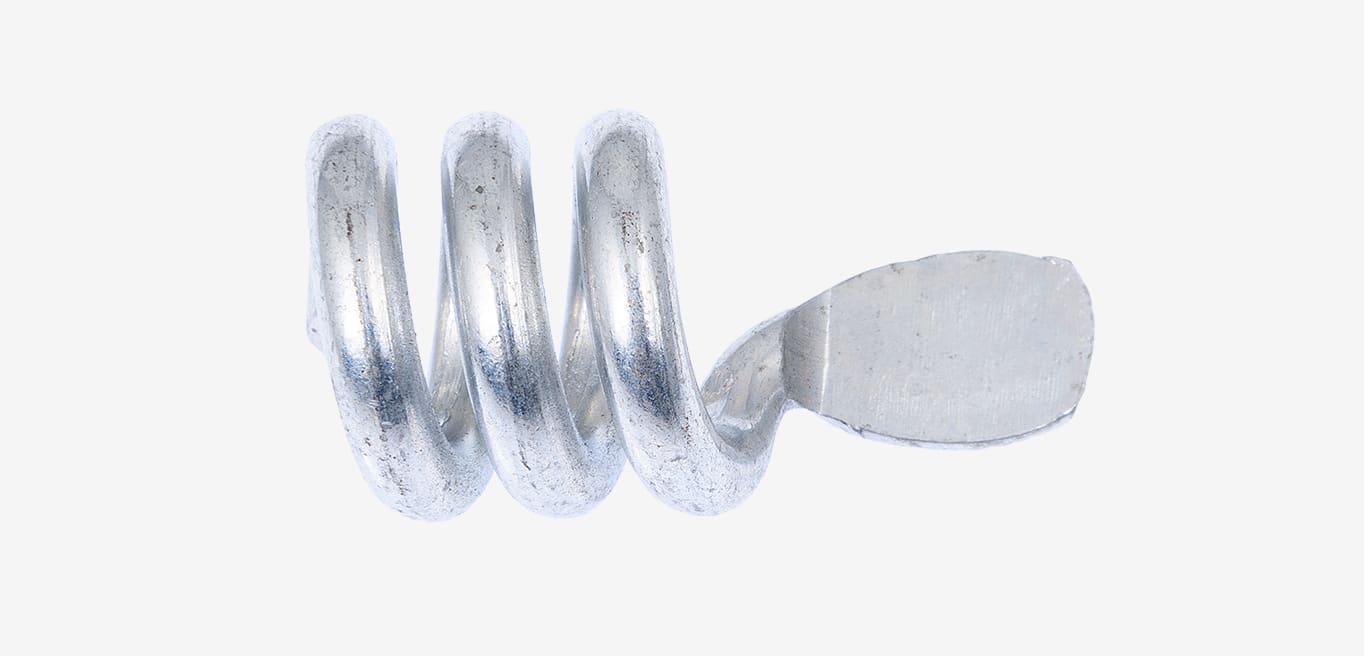

      • High load capacity is achieved due to the expansion coil locking into the sides of the hole, when set, to give cast-in type performance
      • High clamping load and resistance to cyclic loading result from the pulldown effect achieved through the rotation setting action of the anchor
      • Low profile hex head provides a neat finish
      • Removal is easy, clean and fast, as the expansion coil stays in the hole leaving no protruding metal parts to grind off.
      • Bolt can be reused with a new coil
    -+APPLICATIONS & TRADES
    Installing handrails, balustrades & saftey barriers Steel Fabricator
    Formworker support Formworker
    Scaffold support Scaffold Contractor
    Anchoring structural steel column/beams Steel Fabricator
    Machinery hold down Maintenance Fitter
    -+SPECIFICATIONS
    Material Bolt

    Carbon Steel

    Corrosion Protection

    Zinc Plating

    Head Styles

    Hex

    Fixing Method

    Through Fixture

    Setting Method

    Rotation

    Anchoring Method

    Expansion

    Substrates

    Concrete

    -+TECHNICAL DATA & DOCUMENTS

    TECHNICAL DATA SHEETS & BPIR STATEMENTS

    ANKASCREW™ XTREM™ & BOACOIL™ EXPANSION ANCHORS TDS

    PDF

    SPECIFIERS ANCHORING RESOURCE BOOK

    BOA™ COIL EXPANSION ANCHORS

    PDF

    BROCHURES AND CATALOGUES

    RAMSET PRODUCT CATALOGUE

    PDF

    RAMSET SPECIFIERS PRODUCT GUIDE

    PDF

    BOA™ COIL EXPANSION ANCHORS PRODUCT CATALOGUE

    PDF
